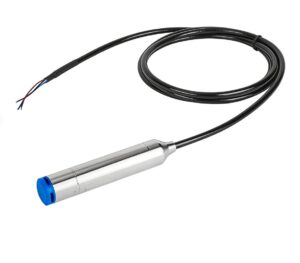

HLS-10 Submersible Level Transmitter
Features
• Measuring range: 0.5mH2O - 200mH2O
• Output signal: 4-20mA, 4-20mA+HART, 0.5-4.5VDC, Modbus-RTU/RS485, others
• Reference accuracy: ±0.1% URL, ±0.5% URL
• Media temperature: -10~ 70℃
• Sensor type: Piezoresistive silicon pressure sensor
• Diaphragm: Stainless steel SUS316
• Sensor seal: O-ring(FKM), stainless steel welding
Industry application
• Depth or level measurement in wells and open waters
• Ground water level measurement

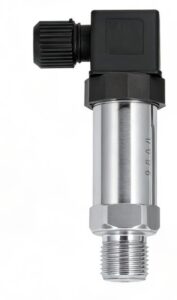

CPT303 Gauge Pressure Transmitter
Features
• Measuring range: 5kPa-100MPa
• Output signal: 4-20mA, 4-20mA+HART, 0-5VDC, Modbus-RTU/RS485, others
• Reference accuracy: ±0.1% URL, optional ±0.075% URL
• Process connection: M20*1.5(M), G1/2(M), G1/4 (M), 1/2-14NPT(M)
• Measuring medium: Liquid, gas, or steam
• Media temperature: -20-80℃
• Electrical connection: DIN43650, IP65; M12*1(4 pins), IP67
Industry application
• Process control system
• Machine building

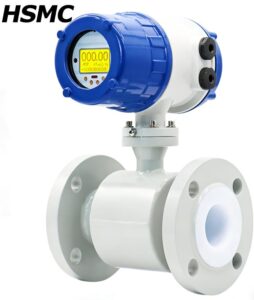

HS500-F Flange Electromagnetic Flow Meter
Features
Wide range of nominal diameters (DN3-3000)
High accuracy 0.2% available
Independent of pressure, temperature, density and viscosity
No moving parts, maintenance-free Self-diagnosis function, empty pipe alarm, exciting alarm Automatic power failure recording function (optional)
Support data record / Bluetooth / wireless
communication Built-in grounding electrodes

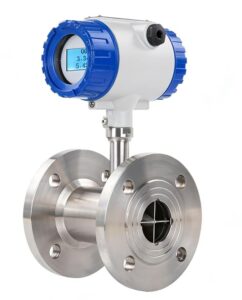

HS500-T Liquid Turbine Flow Meter
Application range
Liquid: water; diesel; etc
(1) Without Impurity
(2) Low viscosity
Connection
Thread: DN4‐DN50
Flange: DN15‐DN200 (DIN, ANSI, JIS)
Wafer: DN15‐DN100
Flow Meter Accuracy
Standard: 0.5% of rate
Optional: 0.2% of rate

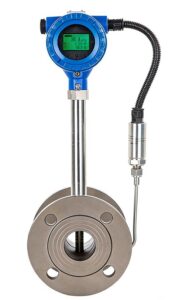

HS500-V Vortex Flow Meter
Size : DN15-DN300mm
● Accuracy : ±1.5%(standard),±1.0%(optional) ● Power Supply : 12VDC,24VDC
● Communication : RS485/Modbus,Hart,Profibus
Flange Standard : EN1092-1
PN10,PN16,PN25,PN40
ANSI BS16.5 Class 150,300,600
JIS2220 10K,20K,40
AS2129 Table D,Table E
AS4087 PN16,PN21,PN35 ● Straight Pipe : Inlet Path ≥ 12D,Outlet Path ≥ 5D
● Signal Output : 4~20 mA,pulse ● Frequency Output : 2~3000 Hz
Benefit
♦ Integrated pressure and temperature compensation.
♦ 4-20mA, pulse with HART or pulse with RS485 are selectable
♦ Wide temperature range up to highest temperature 350℃
♦ Adopt Japan OVAL technology and design
♦ Embedded sensor, 4 piezo-electric crystal encapsulated inside the sensor.
♦ No moving parts, no abrasion, non-wearing parts inside, fully welded SS304 body (SS316 selectable)

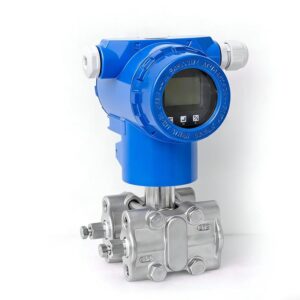

HDP-23 Differential Pressure Transmitter
Measuring range: 200Pa-10MPa
• Output signal: 4-20mA, 4~20mA/HART, Modbus-RTU/RS485, customer
• Reference accuracy: ±0.075% URL, optional ±0.05% URL
• Media temperature: -40-120℃
• Measuring medium: Liquid, gas, or steam flow as well as liquid level, density and pressure
• Power supply: 4~20mA two wire, power supply: 10.5-55vdc 4~20mA+HART two wire, power supply: 16.5-55vdc
• Diaphragm material: SUS316L, Hastelloy C
• Process connection: M20*1.5(M), 1/2-14NPT(F), 1/4-18NPT(F)

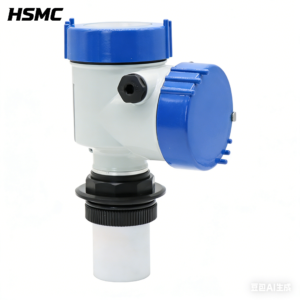

UT200 Ultrasonic Level Meter
Ultrasonic level meter (for bulk material level or liquid level)is a level measuring device with the features of non-contact, high reliability, cost-effective, easy to be installed and maintained.
Level Range: 5, 10, 12，15, 20 m
Accuracy: 0.5%-1.0%
Resolution 3mm or 0.1%
Display LCD Display
Analog Output Two Wire 4～20mA/250Ω Load
Relay Output No
Power Supply Standard 24VDC
Environmental Temperature Transmitter -20～+60℃，Sensor -20～+80℃
Communication No
Protection Class Transmitter IP65, Sensor IP68
Cable No
Probe Installation Based on the level range
